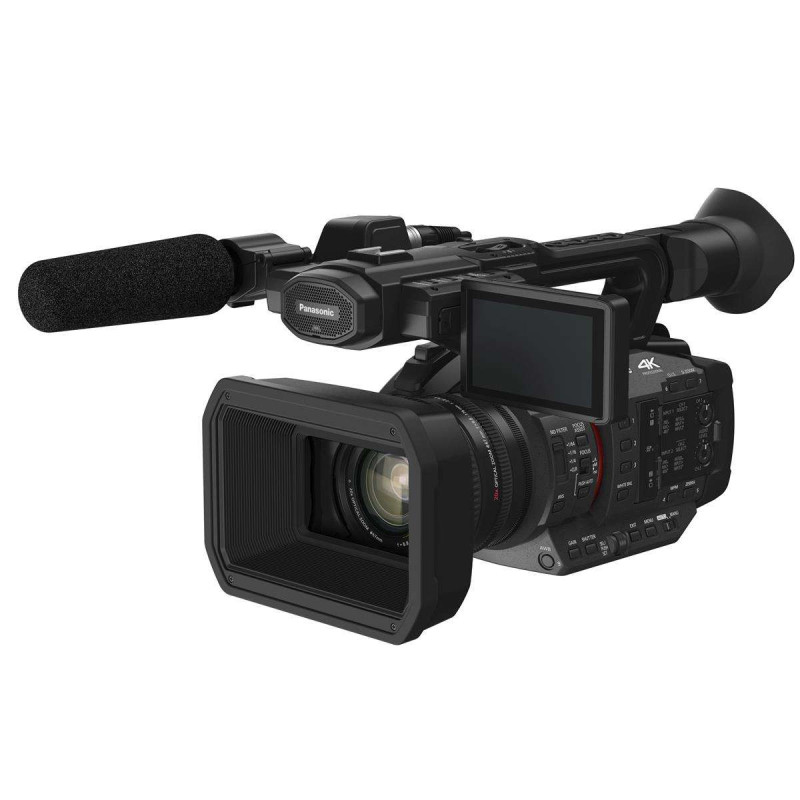

Professional Camcorder 4K UHD Panasonic HC-X20EE OPENBOX

What is OPENBOX?
Additional features:
Brand Registration Country:  Japan
Country of Origin:  China
Motion Image Maximum Resolution:  3840 × 2160
Image Sensor:  1.0-type MOS Sensor
Все характеристики...

    +1198 грн. to bonus account
  • Made in: CHINA
  • Model: HC-X20EE OPENBOX
  • Product id:5127
  • Availability: Not available
  • 119 799 грн
    Free Shipping

Digital Video Camera 4K UHD Panasonic HC-X20EE OPENBOX

Professional 4K 60p video camera
The X20 camera is equipped with a 1.0 ( 1.0 -inch) type sensor. It provides powerful shooting support with optical performance that ensures your subject is captured and the mobility that only a handheld camera with a built-in lens can offer.
24.5mm wide angle lens with 20x optical zoom
The lens covers a range of focal lengths from 24.5mm wide-angle to 490mm telephoto with 20x zoom. i.ZOOM achieves 24x zoom in 4K resolution and 32x zoom in FHD resolution.
Universal recording mode
Supports 200Mbps high bit rate for 59.94p/50p video recording with HEVC ( LongGOP / 10bit 4:2:0/MOV ) codec. Super Slow Motion supports 10 -bit FHD recording at 120/100 fps and 4K ( UHD ) VFR at 2 to 60 fps for fast-motion or slow-motion shooting, allowing you to achieve high creative expressiveness of the video.
High-precision autofocus with 4K resolution
Face detection accurately recognizes objects in place, eliminating focus problems and underexposure. In addition, the addition of color recognition has improved object tracking without interruption when the face moves in any direction.
5 -axis static optical image stabilizer HYBRID OIS+
For both UHD and FHD , in addition to optical image stabilization, electronic stabilization works to detect and correct hand shake in 5 axes, including rotational blur. Ball OIS system. reduces friction on the drive section, achieving sensitive correction even with low-amplitude hand tremors.
Internal recording 4:2:2 10 bit
4:2:2 color profile recording 10- bit LongGOP UHD 29.97p/25p ( 150 Mbps) or FHD 59.94p/50p ( 100 Mbps) SD cards. Outputs 10 -bit UHD 59.94p/50p images via HDMI.
Streaming in real time in Full - HD format
HD streaming, compatible with RTSP/RTP/RTMP/RTMPS protocols, allows you to directly connect and broadcast concerts, sporting events and breaking news on Facebook , YouTube , etc.
Wireless control from tablet or smartphone
The built-in Wi - Fi module allows you to establish a Wi - Fi connection for the device without using additional tools. It is also possible to use the HC ROP program for tablets or smartphones, wireless camera setup and lens control.
Фото Видео / Видеокамеры
Additional features:
Brand Registration Country:
Japan
Country of Origin:
China
Motion Image Maximum Resolution:
3840 × 2160
Image Sensor:
1.0-type MOS Sensor
Total Pixels, mp:
15.03
Optical Zoom:
20x
Digital Zoom:
×2/×5/×10
Wi-Fi Frequency:
2412 MHz to 2462 MHz [1 to 11ch]
IR Filter:
Incorporates the ON/OFF control function
MP4 (HEVC) Recording / Playback Mode:
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
TC IN/OUT:
No
Still Imafge Recording Format:
JPEG (DCF/Exif2.2)
59.94 Hz Mode Shutter Speed:
59.94i/59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,1/1500,1/2000, 1/3000, 1/4000, 1/8000 sec23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
DUAL CODEC SECTION Recording Format:
n/a
Camera Remote Input:
2.5mm diameter super mini jack x 1
Dimensions (WxHxD), mm:
Approx. 173 x 195 x 344 mm (6.82 x 7.68 x 13.55 inch) (including lens hood, excluding eye cup and microphone holder)
Focus:
Auto/Manual
50.00 Hz Mode Shutter Speed:
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,1/3000, 1/4000, 1/8000 sec25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,1/3000, 1/4000, 1/8000 sec
DUAL CODEC SECTION Video Compression Method:
n/a
Ethernet:
No
Built-in Microphone:
Stereo microphone
59.94 Hz Mode Slow Shutter Speed:
59.94i/59.94p: 1/8, 1/15, 1/30 sec29.97p: 1/8, 1/15 sec23.98p: 1/6, 1/12 sec
DUAL CODEC SECTION Audio Compression Method:
n/a
DC Input:
DC 12V (11.4V ― 12.6V) EIAJ Type4
Sensitivity:
n/a
Package Dimensions (WxHxD), cm:
n/a
Recording/ Playback Mode AVCHD:
[4:2:0 8bit] PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
Speaker:
20 mm diameter, round x 1
50.00 Hz Mode Slow Shutter Speed:
50i/50p: 1/6, 1/12, 1/25 sec25p: 1/6, 1/12 sec
DUAL CODEC SECTION Recording format FHD 50Mbps:
n/a
Viewfinder:
1.0 cm (0.39-inch) Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots
Filter Diameter, mm:
67
Image Stabilizer:
Ball O.I.S., 5-Axis HYBRID O.I.S.+ (UHD
35 mm Film Camera Equivalent (Photo):
24.5 ― 490 mm
59.94 Hz Mode Synchro Scan:
59.94i/59.94p: 1/60.0 ― 1/249.6 sec29.97p: 1/30.0 ― 1/249.8 sec23.98p: 1/24.0 ― 1/249.7 sec
DUAL CODEC SECTION Recording format FHD 8Mbps:
n/a
Remote Controller:
No
Video SDI OUT:
No
Recording Format Video:
MOV, MP4, AVCHD
Motion Image Effective Pixels:
15.03 megapixels
Power Consumption:
18.5W (LCD Monitor)
50.00 Hz Mode Synchro Scan:
50i/50p: 1/50.0 ― 1/250.0 sec25p: 1/25.0― 1/250.0 sec
LIVE STREAMING Video Compression Format:
H.264/MPEG-4 AVC Main Profile, High Profile
Intelligent Zoom OFF:
20x
35 mm Film Camera Equivalent (Video):
24.5 ― 490 mm
Manual Ring / Dial:
Focus / Zoom / Iris
59.94 Hz Mode VFR Recording Frame Rate:
2, 12, 15, 20, 22, 24, 26, 28, 30, 32, 34, 36, 45, 48 ,60 fps
LIVE STREAMING Video Resolution:
1920 x 1080 (FHD), 1280 x 720 (HD), 640 x 360, 320 x 180
Intelligent Zoom ON:
Max. 32x (UHD 24x)/×32 (FHD), ×24 (UHD)
Recording Media:
SDHC/SDXC Memory Card, UHS-I compatible
USB Interface:
Type-C x 1, USB3.1 Gen 1, HOST/DEVICE (switchable menu)HOST: Bus power supported (5V, 0.9A), USB ethernet adaptor supportedDEVICE: mass storage function (read only)
Lens Brand:
Panasonic Lens
Interface HDMI:
Type A x 1 (VIERA Link not supported), supports time code output and remote recording controlOutput format: 4:2:2 10bit2160/59.94p/50.00p/29.97p/25.00p/23.98p,1080/59.94p/50.00p/29.97p/25.00p/23.98p/59.94i/50.00i,720/59.94p/50.00p, 480/59.94p, 576/50.00p
50.00 Hz Mode Shutter Speed VFR Recording Frame Rate:
2, 12, 21, 23, 25, 27, 30, 37, 50 fps
LIVE STREAMING Streaming Method:
Unicast, Multicast
Minimum Illumination:
0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)
59.94 Hz Mode Super Slow Recording Frame Rate:
FHD 120 fps (1/2 speed at 60p, 1/4 speed at 30p, 1/5 speed at 24p)
LIVE STREAMING Frame Rate:
System frequency = 59.94 Hz: 60 fps, 30 fps, 24 fpsSystem frequency = 50.00 Hz: 50 fps, 25 fps
White Balance:
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K—15000K) / Ach Fixed / Bch Fixed
Weight, g:
Approx. 2040g (4.50 lb) (main unit only (including grip belt), excluding lens hood, battery, and supplied accessories)Approx. 2490g (5.49 lb) (including lens hood, supplied battery, eye cup, two SD cards, microphone holder and INPUT terminal caps)
Headphone (stereo mini) Interface:
3.5 mm diameter stereo mini jack x 1
50.00 Hz Mode Super Slow Recording Frame Rate:
FHD 100 fps (1/2 speed at 50p, 1/4 speed at 25p)
LIVE STREAMING Bit Rate:
24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps, 0.5 Mbps
EAN Code:
n/a
Product on the Manufacturer's Website:
USB Charge:
n/a
Audio Compression Method:
MOV: LPCM, 48kHz/24bit, 2chMP4: AAC, 48kHz/16bit, 2chAVCHD: Dolby Audio, 48kHz/16bit, 2ch
LIVE STREAMING Audio Compression Format:
AAC-LC, 48 kHz/16 bit, 2ch
HS Code:
8525 89 00 90
LCD Monitor:
8.8 cm (3.5-inch) Wide LCD monitor (About 2,760,000 dots)
Power Supply:
7.28V (Battery) / 12V (AC Adaptor)
Iris:
Auto / Manual
Accessory Shoe:
Yes
2-slot Function:
Relay recording, simultaneous recording, background recording
LIVE STREAMING Network Protocol:
RTSP/RTP/RTMP/RTMPS
Focal length, mm:
8.8 ― 176
Recording Still Image Size:
Video Playback Mode: 3840 x 2160 (16:9), 1920 x 1080 (16:9), 1280 x 720 (16:9)
Still Image Effective Pixels:
15.03
System Frequency:
59.94Hz / 50.00Hz
Audio Input:
XLR (3 pins) x 2Input high impedance, LINE/MIC/MIC+48 V (switchable SW)LINE:+4dBu/0dBu (switchable menu)MIC: –40dBu/–50dBu/–60dBu (switchable menu)
Packed weight, g:
n/a
Video Compression Method:
MOV(HEVC)/MP4(HEVC): H.265/MPEG-4 HEVC Main10 ProfileMOV, MP4: H.264/MPEG-4 AVC High ProfileAVCHD: H.264/MPEG-4 AVC High Profile
On-Screen Display Language:
English, Ukrainian, Russian (OSD language depends on the country or region in which the camera was purchased)
Latitude:
n/a
MOV (HEVC) Recording / Playback Mode:
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 200M: Average 200Mbps (VBR)UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 150M: Average 150Mbps (VBR)
Audio Output SDI Out:
No
STANDARD ACCESSORY:
AC Adaptor, AC Cable, Rechargeable Battery Pack (5,900mAh), Battery Charger, Microphone Holder, Microphone Holder Screws, Input Terminal Cap, Eye Cup, Lens Hood
Night Mode:
Yes
Recording/ Playback Mode MP4:
[4:2:0 10bit] UHD 3840x2160 59.94p/50.00p HEVC LongGOP 100M: Average 100Mbps (VBR)UHD 3840x2160 29.97p/25.00p/23.98p HEVC LongGOP 72M: Average 72Mbps (VBR)
Wi-Fi Standard:
IEEE 802.11b/g/n
ND Filter:
Clear, 1/4, 1/16, 1/64
MOV Recording / Playback Mode:
[4:2:0 8bit] UHD 3840x2160 59.94p/50.00p 420LongGOP 150M: Average 150Mbps (VBR)UHD 3840x2160 29.97p/25.00p/23.98p 420 LongGOP 100M: Average 100Mbps (VBR)[4:2:2 10bit] UHD 3840x2160 29.97p/25.00p/23.98p 422 LongGOP 150M: Average 150Mbps (VBR)FHD 1920x1080 59.94p/50.00p ALL-I 200M: Average 200Mbps (VBR)FHD 1920x1080 59.94i/50.00i ALL-I 100M: Average 100Mbps (VBR)FHD 1920x1080 29.97p/25.00p/23.98p ALL-I 100M: Average 100Mbps (VBR)FHD 1920x1080 59.94p/50.00p 422 LongGOP100M: Average 100Mbps (VBR)FHD 1920x1080 59.94i/50.00i/29.97p/25.00p/23.98p 422 LongGOP 50M: Average 50Mbps (VBR)
Audio Output HDMI:
2 ch (LPCM)
Aperture F Value:
F2.8 ― 4.5
